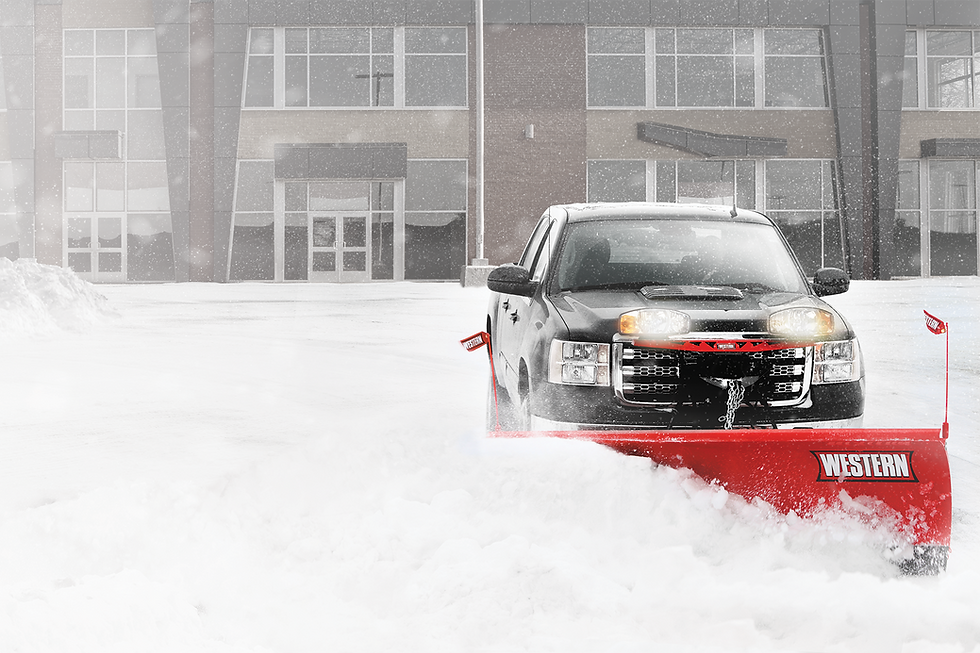

Western 7'6" Pro-Plow Series 2 Snowplow Complete Assembly
- Blade Width: 7'6"
- Fits: Truck Class 2 & 3 & Tractors
- Moldboard: Powder-Coated Steel
**Please Send a Message with the Year, Make, and Model of Truck to determine correct Truck Mount and Headlight Adapter.**
Package Includes:
72381- Moldboard/Blade,
75200-3 - Big Box Blade Attachment A-Frame,
Vehicle Specific Mount,
72530 - NightHawk Halogen Plow Lights,
29070-1 - Isolation module,
Vehicle Specific Harness Kit and
35500 Hand-Held or 35600 Joystick Controller
With customers counting on you, you need a plow you can trust. Take professional to the next level with the WESTERN® PRO-PLOW® Series 2 snow plow. A robust straight blade, intended for entry-level commercial use. Clear residential driveways and light-commercial properties with ease and simplicity.
WESTERN® NIGHTHAWK™ LED headlights are available as an Upgrade ($600). They are designed with patented EdgeView™ Technology. The dedicated LED bulb directs light through the outer edge of each plow light to provide a full 180 degrees of light visibility from plow edge to plow edge, giving you the best all-around view of the plow’s operating environment. See a job well done—clear as day—at any hour.
PLOW BLADE CONSTRUCTION
The rugged moldboard is 29″ tall and comes in 11-gauge powder coated steel in 7′ 6″, 8′, and 8′ 6″ widths. It is also available in 3/8″ high-density polyethylene* in 7′ 6″ and 8′ widths.
The durable poly blade provides a slick surface for enhanced snow-rolling action and a maintenance-free surface. A 60-degree attack angle delivers balanced, clean-scraping performance, and a high carbon steel cutting edge comes standard to reduce wear and extend the life of the blade.
STRUCTURAL REINFORCEMENT
Seven vertical ribs provide structural reinforcement for exceptional torsional strength and rigidity to eliminate blade twisting.
The high-strength steel base channel provides extra support along the bottom of the plow blade.
The 1″ diameter pivot bolt secures the plow in place, ensuring proper alignment and reducing stress on the overall plow assembly.
RELIABLE HYDRAULICS
We manufacture our own hydraulic components to ensure the highest standards of quality and reliability, so that you get a hydraulics system that’s not only fast and responsive, but that’s built to last season after season.
Fully enclosed components are protected from the elements.
TRIP PROTECTION
Four heavy-duty coil springs protect your plow and truck by allowing the whole blade to trip when striking obstacles.
The shock absorber reduces jarring and softens the blade return when tripping occurs, to extend the life of your truck and plow.
SHOE KIT
Protect your plow and the road, while extending the life of your cutting edge with an adjustable shoe kit. The cast iron construction and shape increases the surface contact area and helps glide over gravel and dirt at the correct height. Extending cutting edge and base angle life when plowing on rocky or abrasive surfaces.
10" Rubber Deflector
Control the snow and always see where you’re going with optional deflectors. Our 2-ply rubber snow deflectors include bolt-on steel plates to ensure proper positioning of the deflectors to keep your view clear and clean.
*This is standard for 7’6″ and 8′ poly models.
* Sold separately for 7’6″, 8′, and 8’6″ steel models.
Imperial 7'6"
Moldboard Options Steel
Blade Type Straight Blade
Vehicle Compatibility Truck Class 2 & 3
Approx. Weight* (Without
Mount)
Steel: 705 lbs
Plowing Width (Full Angle) 6'6"
Blade Width 7'6"
Blade Height 29"
Blade Thickness Steel: 11 ga
Poly: 0.375"
Steel: 11 ga
Shock Absorbers 1
Trip Springs 4
Ribs 7
Lift Cylinder 1½" x 8"
Angling Rams 1½" x 10"
Cutting Edge 3/8 " x 6" (Standard)
Mount Type UltraMount® 2
